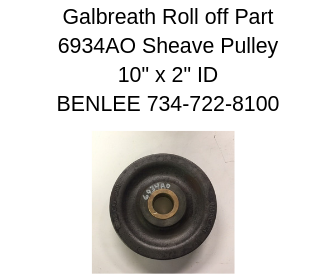

Galbreath 6934AO Replacement Cable Sheave – 10" OD x 2" ID

Replace a worn, damaged, or seized roll-off cable pulley with this 10-inch outside diameter x 2-inch inside diameter bronze-bushed replacement sheave for compatible Galbreath roll-off trucks and cable hoist systems.

Offered as a replacement for Galbreath part number 6934AO, this cable sheave is designed for applications using 7/8-inch wire rope.

The sheave features a bronze-bushed center with grease grooves, providing a lubricated bearing surface that can help reduce friction and wear between the rotating pulley and its mounting shaft.

This replacement pulley is commonly used in compatible T-plate and slide-plate sheave assemblies on commercial roll-off equipment.

Whether you're repairing a damaged hoist cable pulley or maintaining your roll-off fleet, this replacement sheave provides an option for equipment requiring matching dimensions and mounting specifications.

IMPORTANT: This listing includes one replacement sheave only. Mounting pins and additional installation hardware are NOT included.

Features & Benefits

• Replacement for Galbreath 6934AO: Intended for compatible Galbreath roll-off hoist cable pulley assemblies.

• 10" Outside Diameter: Designed for equipment requiring a matching 10-inch cable sheave.

• 2" Inside Diameter: Features a 2-inch bronze-bushed center bore.

• Bronze-Bushed Center: Provides a bearing surface that helps reduce direct metal-to-metal contact and wear.

• Grease Grooves: Help distribute lubrication across the intended rotating contact surfaces.

• 7/8" Wire Rope Application: Designed for compatible roll-off hoist systems using 7/8-inch cable.

• T-Plate / Slide-Plate Application: Suitable for matching cable sheave mounting arrangements.

• Replacement Sheave Only: Mounting pins, retainers, and additional hardware are not included.

• SKU CA018: Available from Roll Off Truck & Trailer Parts.

Product Specifications

Galbreath 6934AO Replacement Part Numbers

This cable sheave is associated with several part-number references used in roll-off equipment replacement-part catalogs.

Primary Replacement Reference: Galbreath 6934AO

Additional Cross-Reference Numbers:

• 10-02187

• 1131209

• 1221399

• 141-SPECIAL / 141SPECIAL

• 6934A0

• 9274-101-0

• 9274-121-0

• E7-10-02187

• G1-P19-013

• G6-MA50S

• ID141SPECIAL

• K8-9274-101-0

• K8-9274-121-00

• M8-0645115

• M8-1131209

• ML-10-02187

• P19-013

• RO6934AO

• ST-9274-121-0

These references can help identify potential replacement applications. Always verify the physical dimensions, cable groove, and mounting configuration before ordering.

Why Choose a Bronze-Bushed Roll-Off Cable Sheave?

A cable sheave rotates around a mounting shaft or pin as the hoist cable moves through the pulley system.

Repeated rotation, heavy operating loads, and exposure to dirt and moisture can cause wear at the rotating contact surfaces.

A bronze-bushed sheave provides a bearing surface between the sheave body and its mounting shaft.

When properly installed and lubricated, this design can offer several advantages:

• Reduced Friction: Bronze provides a suitable bearing surface against a compatible steel mounting shaft.

• Reduced Shaft Wear: The bushing separates the rotating sheave body from direct contact with the mounting pin.

• Improved Lubrication: Grease grooves help distribute lubricant across the bearing surfaces.

• Smoother Rotation: Correct lubrication and alignment can help reduce binding and resistance.

• Maintenance Benefits: Proper lubrication and routine inspection can help maintain the sheave's serviceability.

Actual performance and service life depend on operating loads, shaft condition, alignment, lubrication, and maintenance.

Replacement Cable Sheave for Galbreath Roll-Off Hoists

Galbreath roll-off hoists are used in commercial waste hauling, recycling, construction debris removal, and industrial container transportation.

These cable hoist systems rely on sheaves to guide wire rope through the loading and unloading mechanism.

This 10" OD x 2" ID bronze-bushed cable sheave is intended for compatible Galbreath hoist assemblies requiring these dimensions.

Common applications include:

• Galbreath roll-off cable hoists

• Galbreath-equipped roll-off trucks

• Compatible T-plate and slide-plate pulley assemblies

• Commercial roll-off dumpster transportation

• Construction and demolition debris hauling

• Municipal and private waste collection

• Recycling and industrial container handling

• Roll-off equipment maintenance and repair

Important: Not every Galbreath hoist uses the same sheave size. Confirm the required part reference, bore diameter, cable groove, and mounting configuration before purchasing.

Signs Your Roll-Off Cable Sheave Needs Replacement

Cable sheaves should be inspected regularly for wear or damage.

Common warning signs include:

• Excessive wear or uneven surfaces in the cable groove

• Cracked or damaged sheave flanges

• Binding or restricted pulley rotation

• Excessive movement around the mounting pin

• Worn or damaged bronze bushing

• Insufficient lubrication

• Corrosion or damaged rotating surfaces

• Abnormal cable tracking or premature wire rope wear

Replacing a worn or damaged sheave can help maintain proper cable guidance and reduce unnecessary wear on the wire rope and surrounding hoist components.

Always inspect the wire rope, mounting pin, retaining hardware, and adjacent components when replacing a sheave.

How to Verify the Correct Galbreath Replacement Sheave

Before ordering, compare your existing pulley with the following specifications.

1. Outside Diameter

Measure across the outside edges of the sheave. This replacement measures 10 inches in outside diameter.

2. Inside Diameter

Measure the finished center bore. This sheave has a 2-inch inside diameter.

3. Wire Rope Size

Confirm that your equipment uses 7/8-inch wire rope.

4. Bronze Bushing

Compare the original sheave's bearing arrangement with the bronze-bushed center on this replacement.

5. Cable Groove

Verify the groove width, depth, and profile are compatible with your existing cable.

6. Overall Sheave Width

Measure the sheave's overall thickness and confirm clearance within the mounting plates.

7. Mounting Pin and Hardware

Verify the existing mounting pin diameter, shaft condition, spacers, retainers, and assembly configuration.

8. Replacement Part Number

Confirm whether your equipment requires Galbreath 6934AO or a verified equivalent.

Important: A 10-inch sheave with a 2-inch bore is not the same as a 10-inch sheave with a 2½-inch bore. Confirm the correct center bore before ordering.

Frequently Asked Questions

What size is the Galbreath 6934AO replacement sheave?

This sheave has a 10-inch outside diameter and a 2-inch center bore.

Does this sheave have a bronze bushing?

Yes. The replacement pulley features a bronze-bushed center with grease grooves.

What size cable does this sheave use?

This replacement sheave is listed for 7/8-inch wire rope.

What does the bronze bushing do?

The bronze bushing provides a lubricated bearing surface between the rotating sheave and its mounting shaft, helping reduce friction and direct wear.

Does the sheave include the mounting pin?

No. This product includes the replacement sheave only. Mounting pins and additional hardware are NOT included.

Will this replace Galbreath 6934AO?

This sheave is offered as a replacement for Galbreath 6934AO. Confirm the original sheave dimensions, cable groove, and mounting configuration before ordering.

Is this the same as Galbreath 6727AO?

No. The Galbreath 6727AO replacement sheave has a 2½-inch center bore, while this 6934AO replacement has a 2-inch center bore. They are not directly interchangeable.

Will this fit every Galbreath roll-off hoist?

No. Different Galbreath hoists may require different sheave dimensions and mounting configurations. Verify the correct part before ordering.

What is the store part number?

The Roll Off Truck & Trailer Parts SKU is CA018.

Order Your Galbreath 6934AO Replacement Cable Sheave

Keep your Galbreath roll-off equipment operating with replacement cable sheaves, pulleys, and related hoist components from Roll Off Truck & Trailer Parts.

This 10" outside diameter x 2" inside diameter bronze-bushed cable sheave (SKU CA018) offers a replacement option for compatible Galbreath cable hoists using 7/8-inch wire rope.

Order your Galbreath-compatible 10" bronze-bushed cable sheave online today!

PLEASE NOTE: SHEAVE ONLY — MOUNTING PIN AND INSTALLATION HARDWARE NOT INCLUDED.

Fitment Note: Galbreath 6934AO and other listed part numbers identify potential replacement applications. Confirm the outside diameter, inside diameter, cable groove, sheave width, and mounting configuration before ordering.
