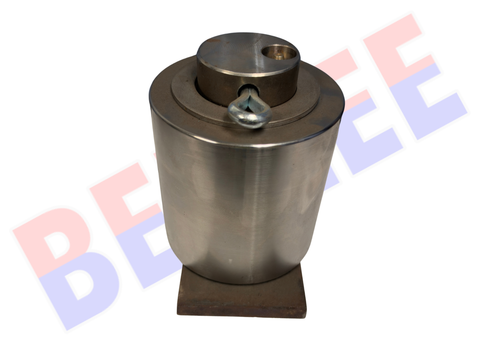

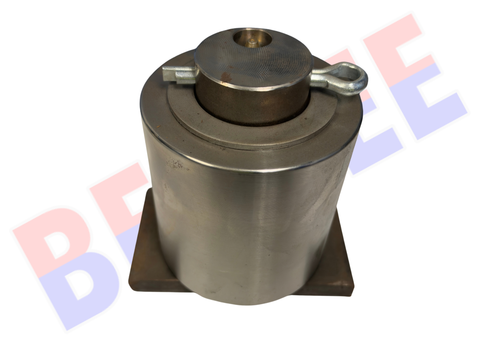

Replace a worn or damaged Galbreath 381AO side roller assembly with this complete 4-inch side roller assembly for compatible Galbreath roll-off equipment. The assembly includes a 4" OD × 2" ID × 4" wide roller, mounting bracket, and shaft.

This side roller assembly welds to the upper tilt frame and is designed for the side-mounted roller position on compatible roll-off equipment. Verify the roller, bracket, shaft, and mounting dimensions against your existing assembly before ordering.

Galbreath 381AO Side Roller Assembly Features

• Manufacturer: Galbreath
• Model/Part: 381AO
• SKU: AT411-4
• Assembly type: Complete side roller assembly
• Roller outside diameter: 4"
• Roller inside diameter: 2"
• Roller width: 4"
• Bracket width: 5"
• Bracket height: 3"
• Shaft diameter: 2"
• Shaft length: 4.8125"
• Mounting: Weld-on
• Typical location: Upper tilt frame

Complete Galbreath Side Roller Assembly

The Galbreath 381AO is a complete side roller assembly rather than a replacement roller alone. The assembly includes the roller, mounting bracket, and shaft.

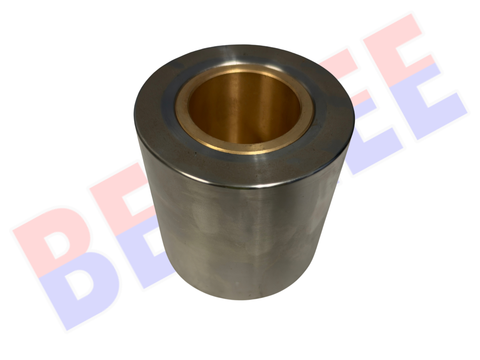

The roller measures 4 inches outside diameter, 2 inches inside diameter, and 4 inches wide. The mounting bracket measures 5 inches wide by 3 inches tall, while the shaft measures 2 inches in diameter and 4.8125 inches long.

Having the complete assembly is useful when the roller, shaft, or mounting components have become worn or damaged and the existing assembly needs to be replaced.

Weld-On Upper Tilt Frame Roller

The Galbreath 381AO assembly is a side-mount roller assembly that welds to the upper tilt frame.

Before ordering, compare your existing assembly carefully. In addition to the roller diameter and width, verify the bracket dimensions, shaft diameter, shaft length, and mounting position to make sure the replacement assembly matches your equipment.

Order a Galbreath 381AO Side Roller Assembly

For compatible Galbreath roll-off equipment, this 4" side roller assembly includes the roller, bracket, and shaft required for the upper tilt frame mounting position.

Verify your existing assembly dimensions before ordering, especially the 4" roller width, 5" × 3" bracket, and 2" × 4.8125" shaft.

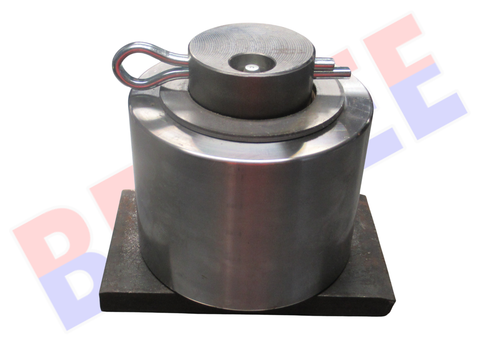

Galbreath 381AO 4" Side Roller Assembly — complete weld-on upper tilt frame assembly.
