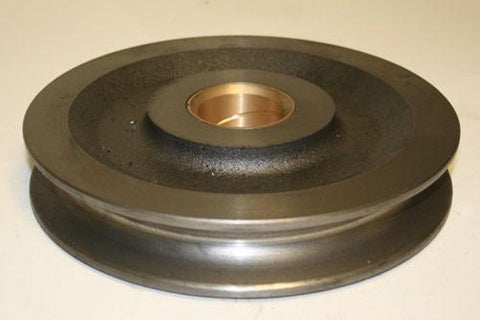

10" Cable Sheave with 2" Bore – Replacement for Rudco P19-013

Replace a worn, damaged, or seized cable pulley on your roll-off equipment with this 10-inch outside diameter x 2-inch inside diameter replacement sheave for compatible Rudco roll-off hoists and cable systems.

This heavy-duty replacement cable sheave is designed for applications using 7/8-inch wire rope and is commonly used in compatible T-plate or slide-plate sheave assemblies on roll-off equipment.

Featuring grease grooves to help distribute lubrication at the intended rotating contact surfaces, this sheave helps guide the wire rope during roll-off container loading and unloading.

Offered as a replacement for Rudco part number P19-013, this cable pulley is available from Roll Off Truck & Trailer Parts under SKU CA018.

IMPORTANT: This listing includes the replacement sheave only. Mounting pins and additional hardware are NOT included.

Features & Benefits

• Replacement for Rudco P19-013: Intended for compatible Rudco roll-off hoist sheave applications.

• 10" Outside Diameter: Designed for pulley assemblies requiring a matching 10-inch sheave.

• 2" Inside Diameter: Features a 2-inch center bore for compatible mounting shafts.

• 7/8" Wire Rope Application: Designed for roll-off cable systems using matching 7/8-inch wire rope.

• Grease Grooves: Help distribute lubricant across the intended rotating contact surfaces.

• T-Plate / Slide-Plate Application: Suitable for compatible cable pulley mounting arrangements.

• Cable Guidance: Helps guide and support wire rope movement during normal roll-off hoist operation.

• Replacement Sheave Only: Mounting pins, retainers, and other hardware are not included.

• SKU CA018: Available online from Roll Off Truck & Trailer Parts.

Product Specifications

Replacement Cable Sheave for Rudco Roll-Off Hoists

Rudco manufactures roll-off hoists and commercial waste-handling equipment used in demanding hauling operations.

Roll-off cable hoist systems depend on properly functioning cable sheaves to guide wire rope through the lifting and pulling arrangement during container loading and unloading.

This 10" OD x 2" ID replacement cable sheave is intended for compatible Rudco applications requiring matching pulley dimensions, wire rope size, and mounting configuration.

Common applications include:

• Rudco roll-off cable hoist systems

• Rudco-equipped roll-off trucks

• Compatible roll-off trailer sheave arrangements

• T-plate and slide-plate pulley assemblies

• Commercial waste-hauling equipment

• Construction and demolition debris hauling

• Recycling and industrial container transportation

• Fleet maintenance and cable pulley replacement

Fitment depends on the installed sheave and mounting arrangement. Not every Rudco-equipped truck or trailer uses the same pulley dimensions.

Why Replace a Worn Roll-Off Cable Sheave?

Cable sheaves are subjected to repeated rotation, wire rope contact, heavy operating loads, and exposure to dirt, moisture, and demanding working conditions.

Over time, the cable groove, center bore, or rotating contact surfaces can wear or become damaged.

Common warning signs include:

• Excessive or uneven wear in the cable groove

• Cracks, chips, or damaged sheave flanges

• Binding or restricted pulley rotation

• Excessive movement around the mounting shaft

• Worn bearing or bushing surfaces

• Corrosion or insufficient lubrication

• Improper wire rope tracking

• Abnormal or accelerated cable wear

Replacing worn or damaged cable sheaves can help maintain proper wire rope guidance and reduce unnecessary wear on related hoist components.

Inspect the mounting shaft, retaining hardware, cable, and surrounding components whenever replacing a sheave.

How to Measure Your Rudco Replacement Sheave

Before ordering, compare your existing sheave with the following specifications.

1. Outside Diameter

Measure across the outside edges of the pulley. This replacement sheave has a 10-inch outside diameter.

2. Inside Diameter

Measure the finished center bore. This replacement sheave has a 2-inch inside diameter.

3. Wire Rope Size

Confirm that your cable hoist system uses 7/8-inch wire rope.

4. Cable Groove Profile

Compare the cable groove width, depth, and shape with your existing pulley to ensure proper wire rope support.

5. Overall Sheave Width

Check the sheave's overall thickness and available clearance between the mounting plates.

6. Mounting Shaft and Hardware

Verify the mounting shaft or pin diameter, spacers, retainers, and assembly configuration.

7. Rudco Replacement Reference

Check whether your equipment requires Rudco P19-013 or a verified equivalent.

Important: Matching the outside diameter and bore alone does not guarantee compatibility. Confirm the cable groove, overall width, and mounting configuration before purchasing.

Frequently Asked Questions

What is Rudco P19-013?

P19-013 is the Rudco part reference associated with this 10-inch replacement cable sheave for compatible roll-off equipment.

What size is this replacement sheave?

This cable pulley measures 10 inches in outside diameter with a 2-inch center bore.

What size cable does this sheave use?

This replacement sheave is listed for 7/8-inch wire rope.

Does this sheave have grease grooves?

Yes. The sheave features grease grooves to help distribute lubrication at the intended contact surfaces.

Does the sheave include the mounting pin?

No. This listing includes the sheave only. Mounting pins and other installation hardware are NOT included.

Will this sheave fit every Rudco roll-off hoist?

No. Rudco equipment may use different sheave sizes, cable configurations, and mounting arrangements. Verify all dimensions before ordering.

Can this sheave be used on a roll-off trailer?

It may be suitable for compatible trailer cable systems requiring a 10-inch sheave with a 2-inch bore and matching groove and mounting specifications.

Is this a complete pulley assembly?

No. This product includes one replacement cable sheave only. Mounting pins, retainers, and other assembly hardware are not included.

What is the store SKU?

The Roll Off Truck & Trailer Parts SKU is CA018.

Order Your Rudco P19-013 Replacement Cable Sheave

Keep your Rudco roll-off equipment operating with replacement cable sheaves, pulleys, wire rope, and related hoist components from Roll Off Truck & Trailer Parts.

This 10-inch outside diameter x 2-inch inside diameter cable sheave (SKU CA018) provides a replacement option for compatible Rudco roll-off equipment using 7/8-inch wire rope.

Order your Rudco-compatible 10" replacement cable sheave online today!

PLEASE NOTE: SHEAVE ONLY — MOUNTING PINS AND HARDWARE NOT INCLUDED.

Fitment Note: Rudco P19-013 is provided as a replacement-part reference. Verify outside diameter, inside diameter, cable groove dimensions, overall width, and mounting configuration before ordering.
