Roll-Rite 10122 Super Duty 12V Electric Tarp Motor – Replaces 10120

Restore reliable electric tarp operation with the genuine Roll-Rite 10122 Super Duty 12V Electric Tarp Motor, designed for demanding commercial truck and trailer tarping applications.

Engineered for high-torque front-to-back tarp systems, this Super Duty motor provides the power needed to roll and retract tarps on compatible roll-off trucks, roll-off trailers, dump trucks, and other commercial hauling equipment.

The Roll-Rite 10122 directly replaces the older Roll-Rite 10120 motor, making it an important replacement option for customers maintaining existing Roll-Rite electric tarp systems.

Built with a heavy-duty spur and helical gear arrangement, steel gearing, precision bearings, and a chrome-plated case, the Super Duty motor is designed for repeated use in challenging operating conditions.

Backed by a five-year Roll-Rite manufacturer's warranty, this genuine replacement motor is an excellent choice for restoring a compatible electric tarping system.

Roll-Rite Manufacturer Part Number: 10122

Direct Replacement For: Roll-Rite 10120

Roll Off Truck & Trailer Parts SKU: TD236

Operating Voltage: 12V DC

Electrical Configuration: Two-Wire Motor

FREE SHIPPING!

Features & Benefits

• Genuine Roll-Rite Motor: Original Roll-Rite Super Duty replacement motor, part number 10122.

• Direct Replacement for Roll-Rite 10120: Replaces the older 10120 motor in compatible installations.

• 12V DC Operation: Designed for supported 12-volt vehicle electrical systems.

• Two-Wire Motor: Uses a two-wire electrical connection for compatible reversing control systems.

• High-Torque Super Duty Design: Engineered for demanding electric tarp applications.

• Spur and Helical Gear Technology: Heavy-duty gearing designed for effective power transmission and durability.

• Heat-Treated Steel Gears: Strong internal gear construction for repeated commercial use.

• Precision Ball Bearings: Support smooth operation of the motor and gear assembly.

• Chrome-Plated Case: Durable metal housing with corrosion-resistant surface protection.

• Commercial Truck and Trailer Applications: Used in compatible front-to-back electric tarping systems.

• Five-Year Manufacturer Warranty: Subject to Roll-Rite warranty terms.

• Free Shipping: Available with free shipping through Roll Off Truck & Trailer Parts.

Product Specifications

Direct Replacement for Roll-Rite 10120

The Roll-Rite 10122 Super Duty motor is identified as the replacement for the older Roll-Rite 10120 electric tarp motor.

If your truck or trailer was originally equipped with a Roll-Rite 10120, the 10122 is the updated replacement option for compatible installations.

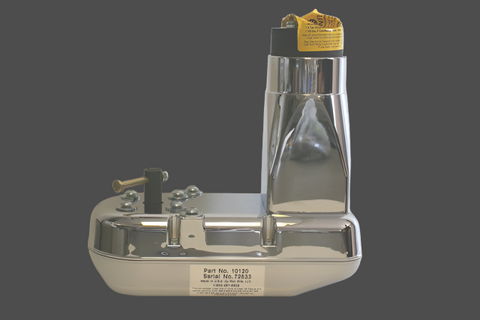

Roll-Rite 10120 – Previous Motor

• Older Roll-Rite Super Duty electric tarp motor reference

• Used on compatible electric tarp systems

• Superseded by the 10122 replacement

Roll-Rite 10122 – Replacement Motor

• Current replacement reference

• 12V DC operation

• Two-wire electrical configuration

• Heavy-duty Super Duty gear motor

• Five-year manufacturer warranty

Important: Verify the original motor part number, drive connection, mounting arrangement, and wiring before installation.

High-Torque Super Duty Gear Motor Technology

The Roll-Rite 10122 is designed for commercial tarp systems where dependable power transmission is essential.

Its Super Duty gearing combines spur and helical gear technology with durable internal components.

Key construction features include:

Spur and Helical Gears

A heavy-duty gear arrangement designed to transfer motor power to the tarp drive assembly.

Heat-Treated Steel Gearing

Durable internal gear components designed for demanding operating conditions.

Precision Ball Bearings

Internal bearings support the rotating gear assembly.

Chrome-Plated Motor Case

A protective exterior finish helps resist corrosion in commercial vehicle environments.

These features make the Roll-Rite Super Duty motor suitable for compatible tarping systems subjected to repeated use and outdoor operating conditions.

Applications for Roll-Rite Super Duty Tarp Motors

Roll-Rite 10122 motors are used in compatible electric tarp systems installed on commercial hauling equipment.

Typical applications include:

• Roll-off trucks

• Roll-off trailers

• Hooklift trucks and hoists

• Multi-axle dump trucks

• End dump trailers

• Transfer trailers

• Chip trailers

• Commercial waste hauling equipment

• Construction and demolition hauling trucks

• Recycling and scrap transportation equipment

The motor is associated with front-to-back tarp systems, including compatible Roll-Rite Super Duty tarp spool assemblies.

Important: Not every Roll-Rite system uses the 10122 motor. Verify the motor part number and equipment configuration before ordering.

Documented Roll-Rite Tarp Spool Applications

Roll-Rite's official parts catalogs identify the 10122 Super Duty Motor in several tarp spool assemblies.

Examples include:

These are manufacturer-documented examples, not a complete list of compatible installations.

Always confirm the correct motor and drive components for your individual tarp system.

Five-Year Roll-Rite Manufacturer Warranty

The Roll-Rite 10122 Super Duty motor is listed with a five-year manufacturer warranty.

The warranty is subject to Roll-Rite's applicable terms, exclusions, installation requirements, and claim procedures.

Keep your purchase information and motor identification details for future warranty reference.

Signs Your Electric Tarp Motor May Need Replacement

A failing tarp motor can interrupt loading, unloading, and tarp operation.

Common symptoms include:

• Tarp motor will not operate when activated

• Intermittent motor operation

• Tarp moves slowly or stalls

• Unusual grinding or gear noise

• Motor operates but the tarp spool does not turn correctly

• Excessive motor heating

• Visible housing or drive damage

• Repeated electrical circuit breaker trips

These symptoms can also be caused by damaged wiring, weak batteries, faulty switches, failed relays, binding tarp components, or worn drive connections.

Before replacing the motor, inspect the complete electrical and mechanical tarp system.

How to Verify the Correct Replacement Motor

Before ordering, check the following:

1. Manufacturer Part Number

Confirm that your current motor is Roll-Rite 10122 or 10120, or that your equipment documentation identifies 10122 as the correct replacement.

2. Operating Voltage

Verify that your tarp system uses 12V DC.

3. Electrical Connection

Confirm the original installation uses a compatible two-wire motor control arrangement.

4. Tarp System Type

Check that your equipment has a compatible Roll-Rite front-to-back tarp system.

5. Mounting Arrangement

Compare the motor mounting locations, brackets, and available clearance.

6. Drive Connection

Verify the output shaft, tarp spool connection, and drive components.

7. Wiring and Circuit Protection

Confirm that the existing wiring, relay, switches, and circuit protection meet the requirements of the replacement motor.

Important: Do not install the motor using an incompatible electrical system or drive connection.

Frequently Asked Questions

What is Roll-Rite part number 10122?

Roll-Rite 10122 is a genuine Super Duty 12V electric tarp gear motor for compatible commercial truck and trailer tarp systems.

Does Roll-Rite 10122 replace Roll-Rite 10120?

Yes. Roll-Rite 10122 is sold as the direct replacement for the older 10120 Super Duty motor. Verify your existing mounting and electrical configuration before ordering.

Is this a 12-volt motor?

Yes. The Roll-Rite 10122 operates on 12V DC.

Is this a two-wire motor?

Yes. The motor is listed as a two-wire electric motor for compatible reversing tarp control systems.

What type of tarp system uses this motor?

It is used on compatible Roll-Rite Super Duty front-to-back electric tarp systems.

Will this fit a roll-off truck?

Yes, when the truck uses a compatible Roll-Rite tarp system that specifies motor 10122 or the applicable 10120 replacement.

Does the motor have a warranty?

Yes. Roll-Rite identifies a five-year manufacturer warranty, subject to its applicable terms.

Does this include a complete tarp system?

No. This listing is for the electric gear motor. The tarp, tarp spool assembly, control box, switches, wiring, and other system components are not advertised as included.

Will this replace a Roll-Rite 10200 TarpStretcher motor?

Do not assume so. Roll-Rite 10122 and 10200 are different motor part numbers used in different tarp drive applications. Confirm the correct replacement through the applicable Roll-Rite parts diagram.

What is your store SKU?

The Roll Off Truck & Trailer Parts SKU is TD236.

Order Your Genuine Roll-Rite 10122 Super Duty Tarp Motor

Restore dependable tarp operation with the genuine Roll-Rite 10122 Super Duty 12V Electric Tarp Motor, a replacement for the older Roll-Rite 10120.

Designed for demanding front-to-back tarp systems, this motor features heavy-duty gearing, durable construction, and a five-year manufacturer warranty.

Roll-Rite Part #: 10122

Replaces Roll-Rite Part #: 10120

Store SKU: TD236

FREE SHIPPING!

Order your Roll-Rite 10122 Super Duty replacement motor online today!

Fitment Note: Verify motor part number, operating voltage, electrical connection, output drive, and mounting configuration before ordering. This listing is for the replacement motor, not a complete electric tarp system.
