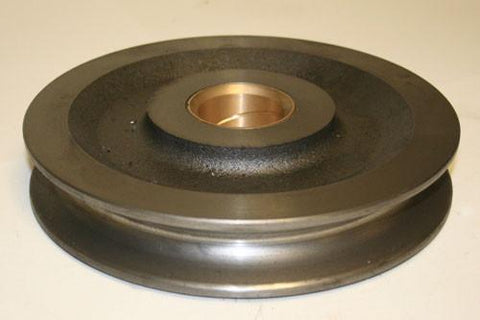

10" Bronze-Bushed Cable Sheave for Clement Roll-Off Trailers

Replace a worn, damaged, or seized cable pulley with this 10" outside diameter x 2" inside diameter bronze-bushed cable sheave for compatible Clement roll-off trailers.

Designed for roll-off cable handling applications, this heavy-duty replacement sheave helps guide the wire rope through the pulley system during container loading and unloading.

The sheave features a bronze-bushed center and grease grooves, allowing lubrication at the rotating contact surfaces. The bronze bushing provides a bearing surface between the sheave and mounting shaft, helping reduce friction and metal-to-metal wear during proper operation.

This replacement pulley is intended for compatible Clement T-plate and slide-plate sheave assemblies requiring a 10-inch sheave with a 2-inch inside diameter.

Available from Roll Off Truck & Trailer Parts under SKU CA018.

Features & Benefits

• Clement Roll-Off Trailer Application: Replacement sheave for compatible Clement cable pulley assemblies.

• 10" Outside Diameter: Designed for installations requiring a matching 10-inch cable sheave.

• 2" Inside Diameter: Bronze-bushed center with a nominal 2-inch bore.

• Bronze Bushing: Provides a bearing surface to help reduce friction and wear between rotating components.

• Grease Grooves: Help distribute lubricant across the bushing's intended contact surfaces.

• Cable Guidance: Helps maintain wire rope tracking through the hoist pulley arrangement.

• T-Plate / Slide-Plate Application: Intended for compatible Clement roll-off trailer sheave mounting systems.

• Replacement Part CA018: Available online from Roll Off Truck & Trailer Parts.

Product Specifications

Why Choose a Bronze-Bushed Cable Sheave?

Cable sheaves experience repeated rotation and heavy operating loads during roll-off container handling.

A bronze-bushed sheave has a replaceable or serviceable bearing interface, depending on its construction, that helps separate the rotating pulley from its supporting shaft.

Compared with a steel sheave operating directly against a steel shaft, a properly designed bronze-bushed assembly can offer several advantages:

• Reduced Friction: Bronze provides a suitable bearing surface for sliding contact with a compatible steel shaft.

• Reduced Shaft Wear: The bushing helps protect the mounting shaft from direct contact with the sheave body.

• Improved Lubrication: Grease grooves help distribute lubricant across the intended bearing surfaces.

• Smoother Rotation: Proper lubrication and correct mounting can reduce binding and resistance.

• Maintenance Benefits: A worn bushing may be serviceable or replaceable depending on the assembly design.

Actual service life depends on operating loads, lubrication, shaft condition, alignment, and maintenance.

Common Applications

This 10" bronze-bushed cable sheave is intended for compatible roll-off equipment applications, including:

• Clement frameless roll-off trailers

• Roll-off trailer cable hoist systems

• T-plate and slide-plate pulley arrangements

• Commercial waste and recycling container transport

• Construction and demolition debris hauling equipment

• Roll-off trailer maintenance and repairs

• Replacement of worn or damaged cable sheaves

Signs Your Roll-Off Cable Sheave Needs Replacement

A worn or damaged sheave can interfere with wire rope movement and contribute to premature cable wear.

Inspect the existing cable pulley for:

• Excessive wear or damage in the cable groove

• Cracks, chips, or damaged pulley flanges

• Excessive play between the sheave and mounting shaft

• Binding or restricted pulley rotation

• Worn or damaged bronze bushings

• Corrosion or insufficient lubrication

• Abnormal cable tracking or uneven wire rope wear

Inspect the wire rope and mounting components at the same time. Damaged hoist cables or sheaves should be evaluated and replaced as appropriate before returning equipment to service.

How to Measure Your Replacement Cable Sheave

Before ordering, compare your existing pulley with the following measurements:

1. Outside Diameter: Measure across the outer edges of the sheave. This pulley measures 10 inches.

2. Inside Diameter: Verify the finished center bore is 2 inches.

3. Overall Sheave Width: Confirm the pulley will fit between your mounting plates.

4. Cable Groove: Compare the groove dimensions and profile with your existing wire rope.

5. Mounting Pin: Verify the shaft diameter, clearance, and condition.

6. Mounting Configuration: Confirm compatibility with your Clement T-plate or slide-plate arrangement.

Important: Matching the outside diameter and bore does not automatically guarantee fitment. Cable groove dimensions, mounting clearance, and shaft configuration must also match.

Frequently Asked Questions

What size is this Clement replacement sheave?

The sheave measures 10 inches in outside diameter and has a 2-inch inside diameter.

Does this sheave have a bronze bushing?

Yes. This pulley features a bronze-bushed center that provides a bearing surface between the sheave and its mounting shaft.

What are the benefits of a bronze-bushed sheave?

A properly lubricated bronze bushing can help reduce friction, provide smoother rotation, and minimize direct wear between the sheave body and mounting shaft.

Does the sheave have grease grooves?

Yes. The sheave is listed with grease grooves to help distribute lubrication across the intended bearing surfaces.

Will this sheave fit every Clement roll-off trailer?

No. Clement trailers may use different sheave sizes, mounting arrangements, and cable configurations. Verify all dimensions before ordering.

Does this include the mounting pin?

No, Mounting pinis not included. This product is listed as a replacement sheave.

Order Your Clement Roll-Off Trailer Cable Sheave

Keep your Clement roll-off trailer operating with replacement cable sheaves, pulleys, bushings, and related components from Roll Off Truck & Trailer Parts.

This 10" OD x 2" ID bronze-bushed cable sheave (CA018) provides a replacement option for compatible Clement roll-off trailer T-plate and slide-plate assemblies.

Order your Clement-compatible 10" bronze-bushed cable sheave online today!

Fitment Note: Clement identifies the intended equipment application. Verify sheave dimensions, cable groove, mounting shaft, and assembly configuration before ordering. Genuine Clement OEM status has not been established.
